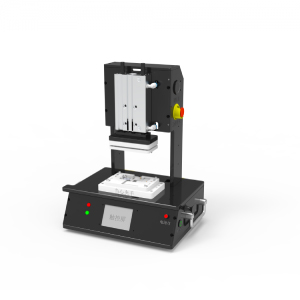

Connector Impedance Test Fixture

Product functions:

Used for impedance test of connector on mobile phone motherboard

Product features:

Test 4-5 groups of connectors at the same time; Independently develop and design LCR module; High precision and stability

Size: 340 * 260 * 450

CT：3

UPH：500

Yield: 100%

Operation height: desktop operation

Number of operators: 1

Labor saving: Na

Air pressure: 0.5MPa

Test accuracy: 1%

Resolution: 0.1M Ω

Range: 10M Ω ~ 10m Ω
